• The machine can dissolve sugar and maltose rapidly. and by add uniform agitation, can reach full uniform effects of dissolution.

• No sediments & the overbumed.

• Both kettle and the shell of the machine are made of stainless steel, not noly meet the requirement of sanitary but also beautiful and durable.

• With steam to dissoive, rapid, economic and convenient.

• Capacity :170Kgs/per 50 minutes (base on the temperature of 127c)

• Machine weight : 800Kgs

• Machine size : L1300xW1300xH1910 m/m

• Horse power : 3HP.

• Kettle size : 1016mm in diameter 1100mm in depth.

• Specially suitable for the delivering syrup to the Confinued Vacuum Condenser

• Weight:50Kgs.

• Size:1".

• Horse power:1/2HP.

¡@

• Its function is to reduce the water content under the condition of low pressure and temmperature, nevertheless, the syrup quality is strictly maintained.

• The syrup after passing through heated alloy copper tube 3/4" diameter is vacuumized with short time & evenness.

• The mixture after vacuum evaporation is composed of up to 2 or 3 0/0 water so as to secure a long term storage of candies.

• Within a short span of operation, the machine is able to produce excellent products in color and taste.

• This machine is made by special copper alloy, with various precise instruments, it always keeps the product with uniform quality.

• With the ability to agitate powdered sugars & spices.

• It's a most updated Vacuum Condenser, automatically controls the concentration in vacuum and makes the production reasonable.

• Capacity:3000Kgs/8Hrs.

• Machine weight : 2700Kgs.

• Machine size : L2000xW850xH3200m/m.

• Horse power : 7 1/2HPx1HP

• The rope is formed by four axes hollow stainless steel roller. which rotate in the
  same direction and are reversed by the rotating gear, the top rollers are targer
  and longer than the general size, their capacity of the Batch Roller is up to 70 Kgs.

• All operating features such as rotation of the rollers. raising and lowering of the
  machine are electrically operated to insure smooh.

• To produce a filled product, a tube can be attached at the middle of the Batch
  Roller and inserted into the center of the sugar mass.

• The machine is used in conjunction with Rope Sizer and Forming Machine. it's
  an automatic operation system.

• Simple operation:notechnical men ard required to keep the machine in trouble
  free operatiem.

• Machine weight : 100Kgs.

• Machine size:L2500xW800xH1560m/m

• Horse power:71/2HP

• The machine is used in conjunction with Batch Roiier and Forming Machine

• To insure that the products are not piled up, whenever, the pressing plate at the end machine raises up to the uppermost position. the motor stops automatically.

• The sizing wheels are adjustable and their speed can be varied, no operators are required at the front of the machine, it's a completely automatic operaion system.

• The machine will deliver a predetermined size of sugar rope to the forming machine at a variable rate of the machine, it's a completely automatic operaion system.

• Capacity 1200-1800 pcs/minute.

• Machine weight :900 Kgs.

• Machine size : L1720xW800xH930m/m.

• Horse power :1HP.

• This machine can form various types of hard candies, fruit
  candies and the candies having jam or powder centers, with option required by the client for the form of the candy by replacment of candy mould.

• Capacity : 1200pcs/minute.

• Machine weight:800Kgs.

• Horse power:1HP.

• With circular cold water system for quick cooling

• Weight : 3500Kgs.


Measurement : l1820xW900xH720m/m.

• Into candy taken out of the Continuous Vacuum Condenser varions adoitions and spices are mixed to give unique flevour by each maker This mixing reuires fuil kneading which is given effciently and in a short time by this machine
  indispensable for this purpose.

• Capacity:3000Kgs/8Hrs.

• Machine weight:1300Kgs.

• Machine size :L1940xW1500xH1800m/m.

• Horse power : 2HP.

• This machine is installed in front of Batch Roller. specially designed for candies with fruit jam cream. The machine is characterized bhy a special made stainlese steel fube which coated with Tefron inserted wihin Batch Former. abie to evenly
  spread fruit jam of right amount into candies by auto reverse switch.

• Machine weight:3500Kgs.

• Machine size:L1500xW650xH1500m/m.

• Horse power:2HP.

• This machine is installed in front of Batch Roller. used to produce candies with powder filler. The machine is characterized by a special-made stainless steel fube coated with Tefron, and which is inserted straightly6 into Batch Roller With an unique helical belivery shaft it is able to evenly put powder fillers into candies An auto regulating speed is available.

• Machine weight:100Kgs.

• Machine size:L2940xW680xH800m/m.

• Horse power : 2HP.

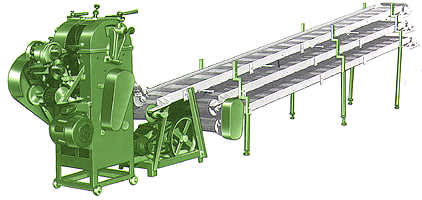

SH-205
COOLING CONVEYER

• This machine is designed for cooling the formed candy to keep
  their form size and fine appearance.

• With multifan cooling air to insure quick and uniform cooling of candy.

• Weight:1200Kgs.

• Machine size : L6000xW1000xH1200m/m.

• Horse power:1HP.

• The machine wraps hard candy, fruit candy etc, in oval form with double ends twist, fine and elegant.

• After the replacemet of round feeding plate, it can wrap various size of candy. Suitable to all double wrapping with wax paper, aluminium foil and cellophane etc.

• Simple operation and maintenance.

• Package size range:(L)16-32mm,(W)16-32mm,(H)5-12mm.

• Wrapping speed :200-250pcs/minute.

• Machine size:abt 400Kgs.

• Machine size:L850xW1080xH1450m/m.

• Horse power:1/2HP.
